Materials
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
- Carbon Steel
- Stainless Steel 304
- Stainless Steel 316
- Brass
Adapters & Stud Connectors
SKU: MAS-CAT-09 · Catalogue Item: 09

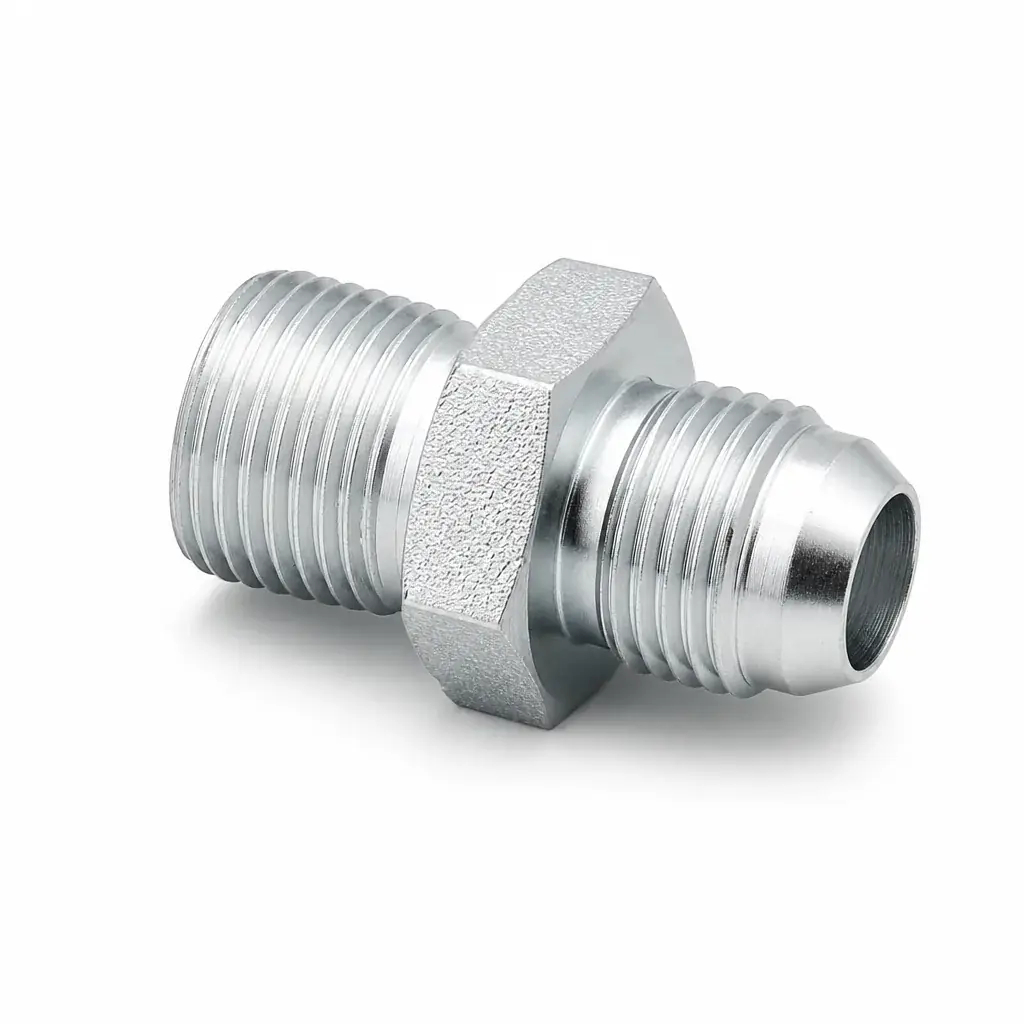

Masofit Male Stud Connector BSP Taper / 24° — precision hydraulic fitting from the official Masofit catalogue (item 09).
Masofit Male Stud Connector BSP Taper / 24° — precision hydraulic fitting from the official Masofit catalogue (item 09).

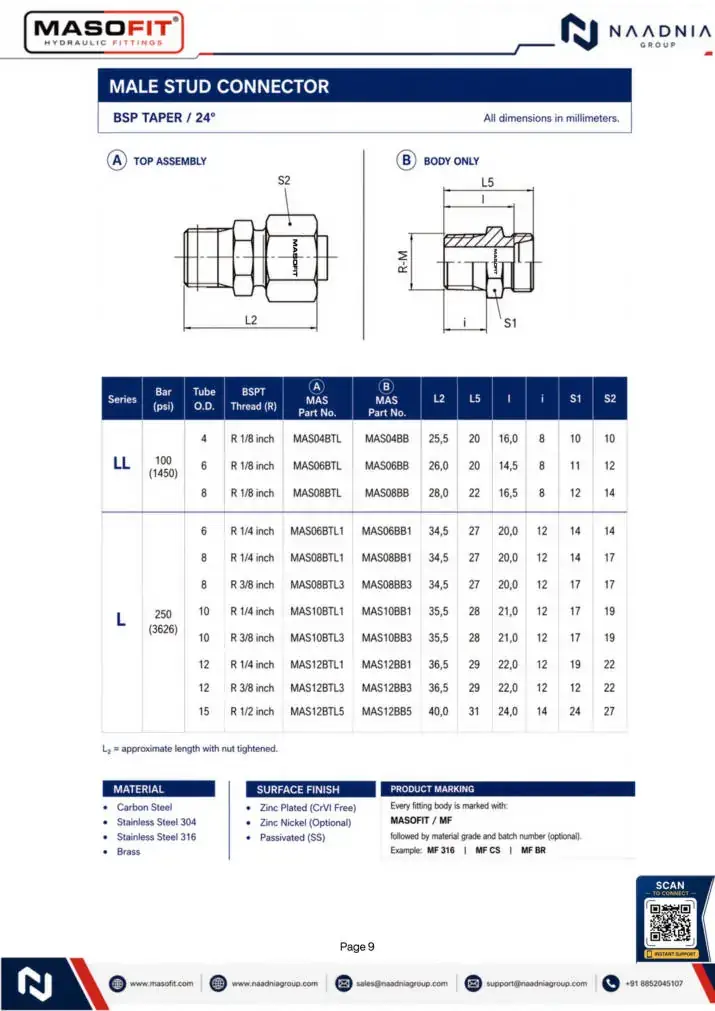

See dimensions, part numbers, pressure ratings, and material options in the Masofit Hydraulic Fittings Catalogue (page 09).
Technical diagram for Male Stud Connector BSP Taper / 24° — Male stud connector. Click a numbered hotspot to explore thread, body, seal, material, size, and standards.
Key hydraulic fitting parameters used in this product and why they matter.
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
Fitting size must match tube/hose OD and system flow demand. Undersizing causes pressure drop; oversizing adds cost and weight.
Imperial sizes (1/4", 3/8", 1/2") are common in hydraulic lines. Metric sizes (mm) are typical for pneumatic tubing. Always confirm thread and tube standards together.
Industry standards ensure interchangeability, sealing performance, and safety across hydraulic fittings.
Connection geometry defines how fluid is routed — straight, angled, branched, or quick-connect.
| Catalogue Item | 09 |
|---|---|
| Material | Carbon Steel / SS304 / SS316 / Brass |
| Surface Finish | Cr(VI)-free zinc plating (standard) |
| Thread | BSPP / BSPT / NPT as per series |
