Materials
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
- Carbon Steel
- Stainless Steel 304
- Stainless Steel 316
- Brass
Hose Fittings & Valves
SKU: MAS-CAT-56 · Catalogue Item: 56

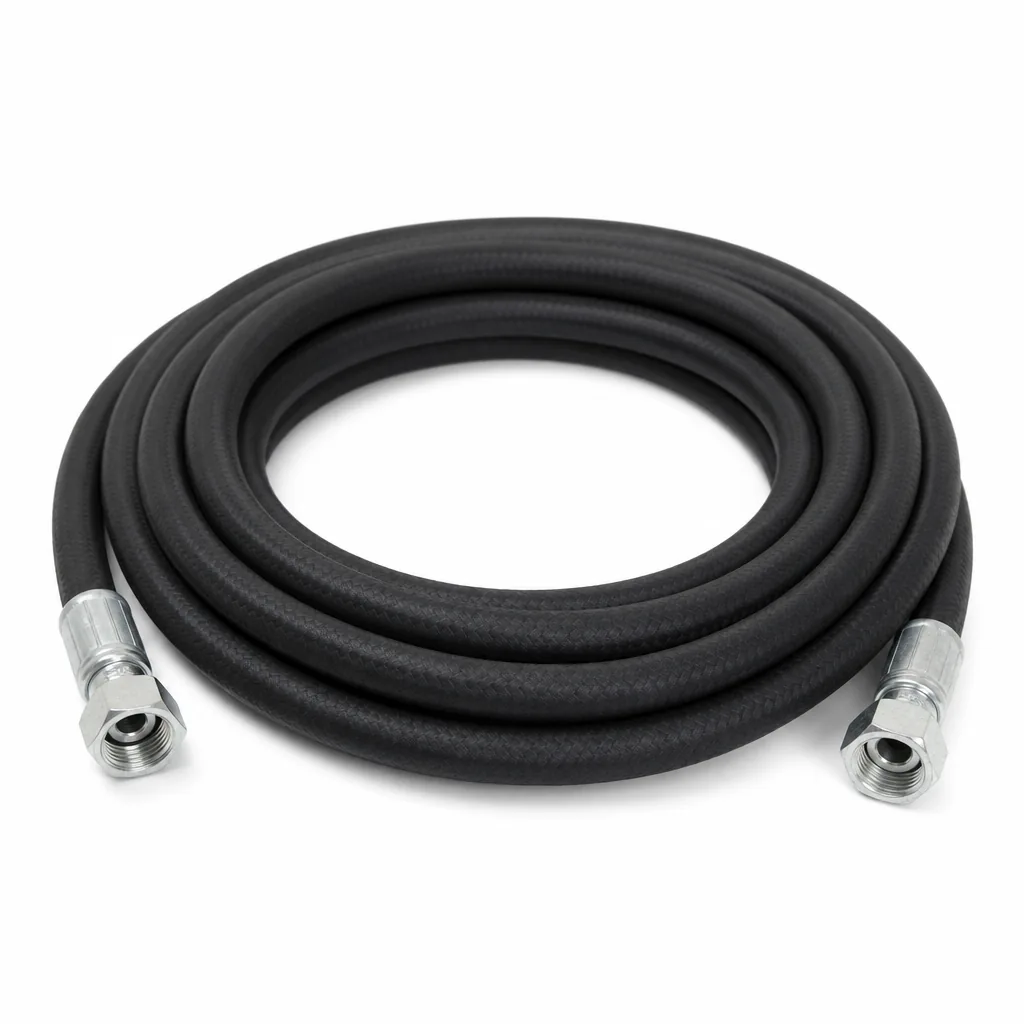

Masofit Hose Pipe Spares Rolls / Complete Hose Assembly — hose and valve solution (catalogue item 56).
Masofit Hose Pipe Spares Rolls / Complete Hose Assembly — hose and valve solution (catalogue item 56).

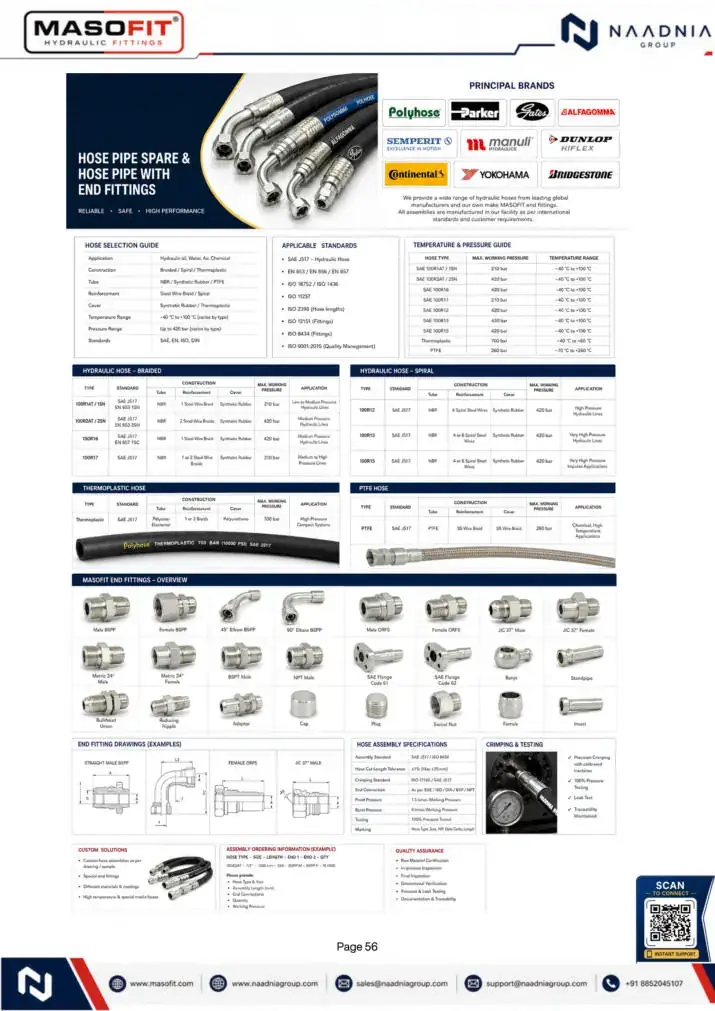

See dimensions, part numbers, pressure ratings, and material options in the Masofit Hydraulic Fittings Catalogue (page 56).
Technical diagram for Hose Pipe Spares Rolls / Complete Hose Assembly — Hose assembly. Click a numbered hotspot to explore thread, body, seal, material, size, and standards.
Key hydraulic fitting parameters used in this product and why they matter.
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
Fitting size must match tube/hose OD and system flow demand. Undersizing causes pressure drop; oversizing adds cost and weight.
Imperial sizes (1/4", 3/8", 1/2") are common in hydraulic lines. Metric sizes (mm) are typical for pneumatic tubing. Always confirm thread and tube standards together.
Industry standards ensure interchangeability, sealing performance, and safety across hydraulic fittings.
Connection geometry defines how fluid is routed — straight, angled, branched, or quick-connect.
| Catalogue Item | 56 |
|---|---|
| Material | Carbon Steel / SS304 / SS316 / Brass |
| Surface Finish | Cr(VI)-free zinc plating (standard) |
