JIC 37° Flare Fittings
SKU: MAS-CAT-49 · Catalogue Item: 49

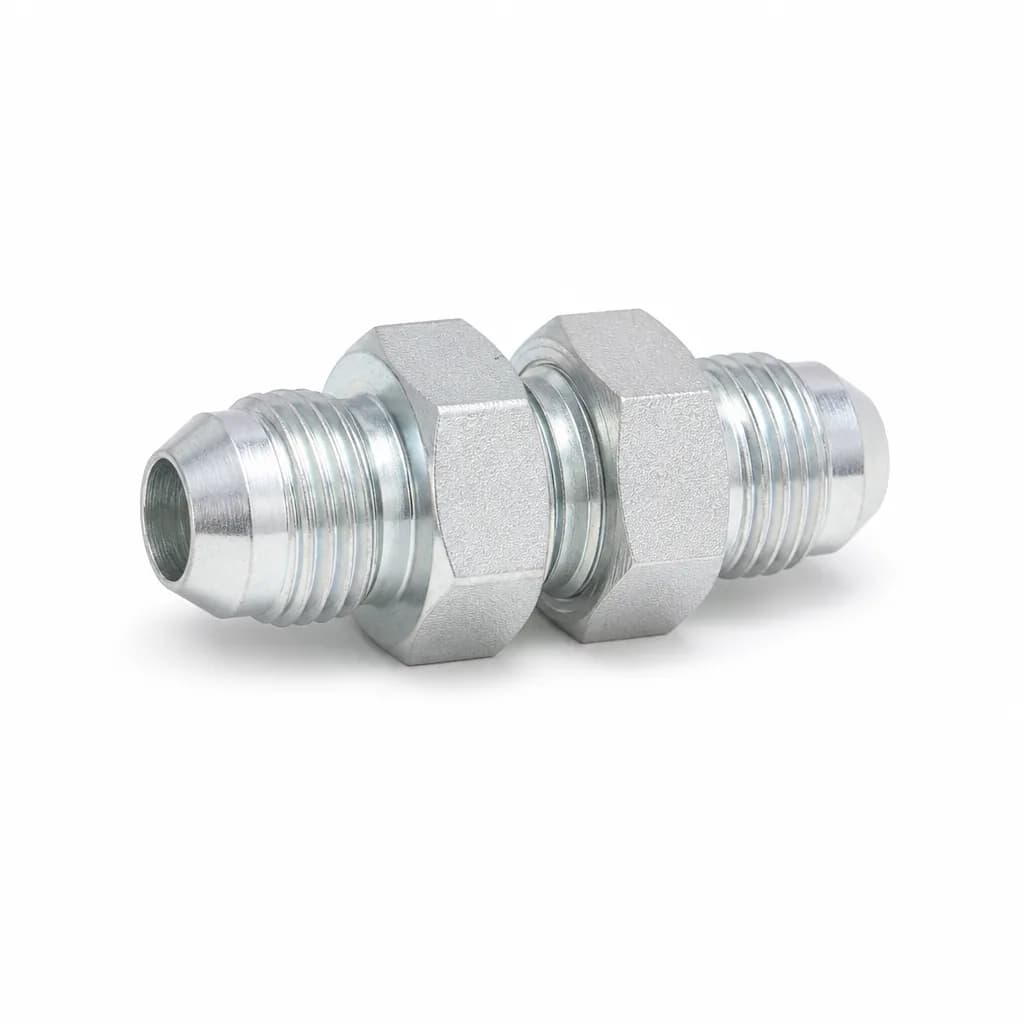

Masofit 37° Flare x Union 37° Flare — SAE J514 JIC 37° flare fitting (catalogue item 49).
Masofit 37° Flare x Union 37° Flare — SAE J514 JIC 37° flare fitting (catalogue item 49).
See dimensions, part numbers, pressure ratings, and material options in the Masofit Hydraulic Fittings Catalogue (page 49).
Technical diagram for 37° Flare x Union 37° Flare — 37° flare union. Click a numbered hotspot to explore thread, body, seal, material, size, and standards.
Key hydraulic fitting parameters used in this product and why they matter.
Material choice determines corrosion resistance, pressure capability, and service life in hydraulic systems.
Fitting size must match tube/hose OD and system flow demand. Undersizing causes pressure drop; oversizing adds cost and weight.
Imperial sizes (1/4", 3/8", 1/2") are common in hydraulic lines. Metric sizes (mm) are typical for pneumatic tubing. Always confirm thread and tube standards together.
Industry standards ensure interchangeability, sealing performance, and safety across hydraulic fittings.
Connection geometry defines how fluid is routed — straight, angled, branched, or quick-connect.
| Catalogue Item | 49 |
|---|---|
| Material | Carbon Steel / SS304 / SS316 / Brass |
| Surface Finish | Cr(VI)-free zinc plating (standard) |
| Standard | SAE J514 · 37° flare |
